Interpretation Translation System - US-Based 5-Year Warranty
Number of Listeners: 5
Sale price$499.00Regular price$599.00
Need help?
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Description
This Wireless Simultaneous Translation System provides superior sound quality and excellent coverage range, combining multiple-channel transmitter and receivers. It can be expanded by adding an unlimited number of additional receivers. More foreign languages can be added for a maximum of 4 in the same room by purchasing 1 additional transmitter and microphone per language. Specially designed for for language interpretation, it has a unique integrated interpreter console function.
Disclaimer: This system requires a live human interpreter. For automatic speech translation and live captioning, use the Enersound Cloud system.
US-Based 3-Year Warranty and Phone Support.
This system requires a human interpreter, it does not translate automatically.
The system is compatible with the Enersound Cloud platform, for automatic speech translation, language interpretation and captioning (functionality not included in this bundle).
System can be expanded to more listeners by purchasing additional Enersound FM receivers R-120 or R-100.

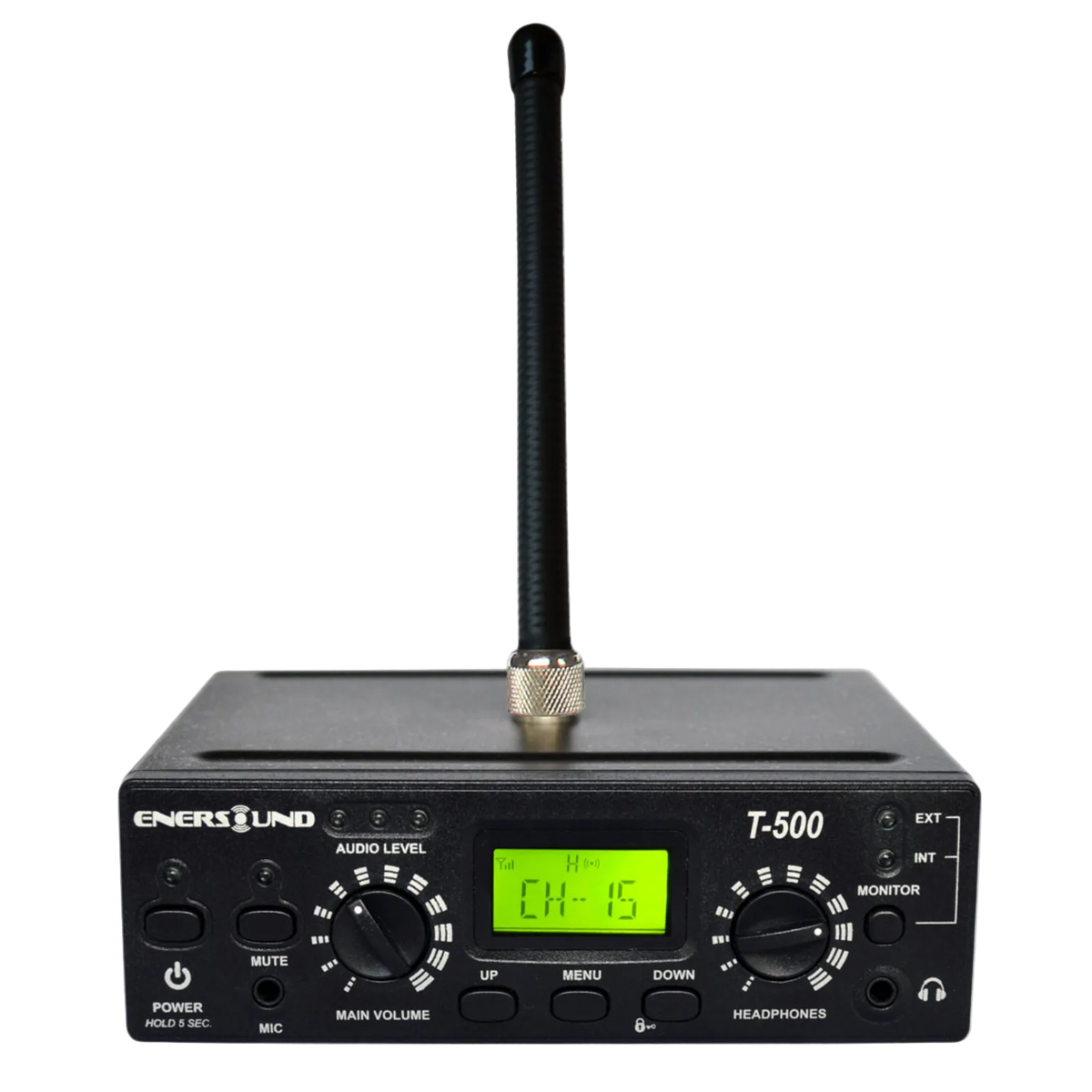

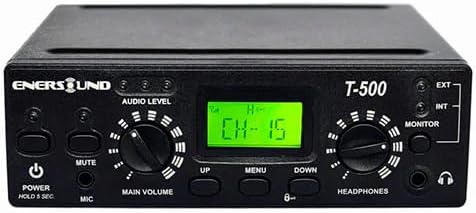

Technical Specifications T-500-4
Operating Frequency: 72.1, 72.5, 72.9, 75.7 MHz
Number of Channels: 4 selectable
Frequency Deviation: Selectable
Wide: ±75 kHz
Narrow: ±25 kHz maximum deviation
Frequency Accuracy: ±0.005%
Transmitter Stability: ±20 ppm
Output Power:
High: 80,000 µV/m at 3 m
Low: 40,000 µV/m at 3 m
Antenna: 50-ohm rubber ducky antenna or optional remote antenna
Antenna Connector: Modified TNC
Compliance: FCC Part 15, Industry Canada
Frequency Response: 100 Hz–15 kHz
Signal-to-Noise Ratio: 70 dB
System Distortion: <2% THD at 80% deviation
Audio Input 1: 3-pin XLR and 1/4" TRS combination jack
Audio Input 1 Type: MIC or LINE level, balanced or unbalanced
MIC Power: Supplies +DC on tip for electret microphones
Audio Processing: 2:1 signal compression
Headphone Output: 3.5 mm stereo TRS jack
Headphone Output Level: Adjustable
Maximum Headphone Power: 61 mW @ 8 ohms
Headphone Impedance: 4–16 ohms
Power Supply Input: 100–240 VAC, 50–60 Hz
Power Supply Output: 15 VDC, 1 A
Power Connector: 5.00 mm OD / 2.5 mm ID barrel type
Operating Temperature: 23°F to 104°F
Storage Temperature: -4°F to 140°F
Humidity: 0–95% relative humidity
Dimensions (D × W × H): 5" × 5.5" × 2.36"
Unit Weight: 1.2 lb (0.54 kg)
Shipping Weight: 2.2 lb (1.1 kg)
Rack Mounting: 1.5 rack spaces high × 0.5 rack space wide
Optional Rack Mounts: RM-501 or RM-502
Rack Capacity: One or two transmitters can be mounted in 1.5 rack spaces

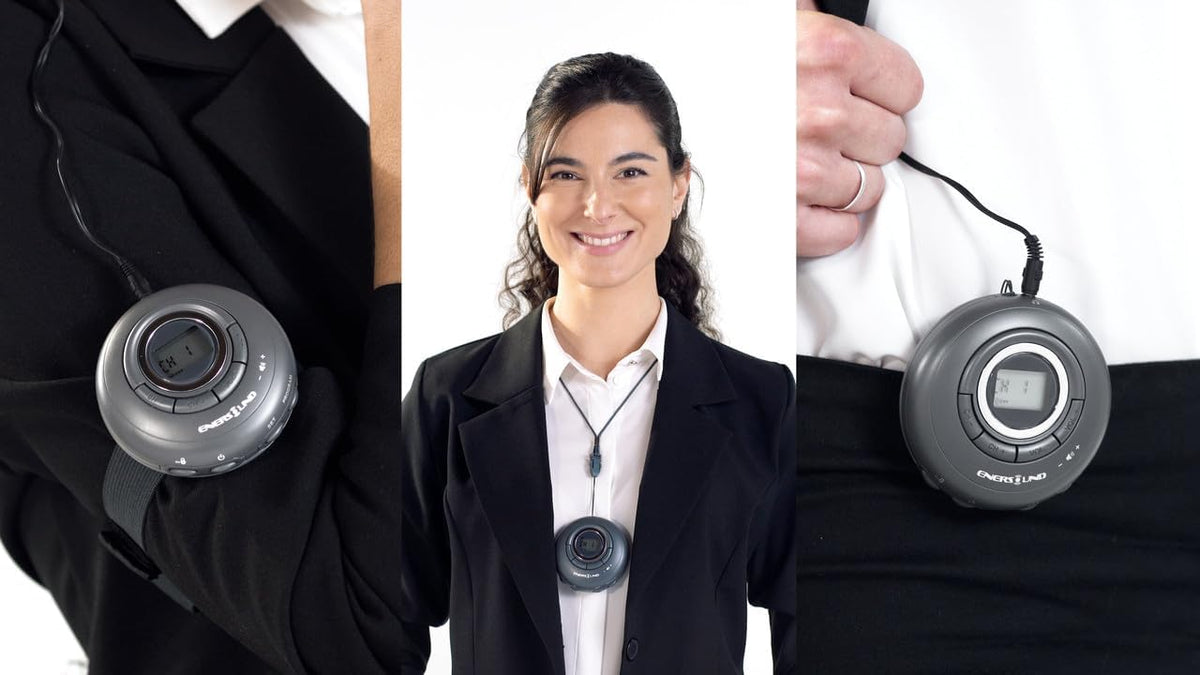

Technical Specifications R-100
Batteries: (2) AAA alkaline batteries (1.5 V × 2) or (2) AAA NiMH rechargeable batteries
Battery Life:
Up to 55 hours with alkaline batteries
Up to 40 hours with NiMH rechargeable batteries
Number of Channels: 1 programmable channel
Available Frequencies: 20
Frequency Range: FM 72.0–76.0 MHz
FM Deviation: ±75 kHz
De-emphasis: 75 µs
Sensitivity: 1.12 µV at 12 dB SINAD
Signal-to-Noise Ratio: 55 dB at 100 µV
Audio Frequency Response: 80 Hz–12 kHz
Audio Power: 33 mW + 33 mW at 32 Ω
Audio Connector: 3.5 mm stereo phone jack
Current Consumption: 22 mA nominal
Diameter: 3" (76 mm)
Height: 1.22" (31 mm)
Weight Without Batteries: 2.3 oz (65 g)
Weight With Batteries: 3.1 oz (88 g)

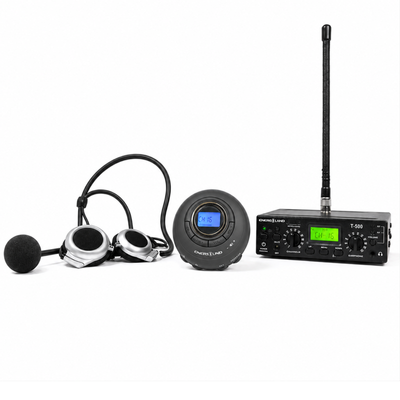

System Includes
(1) Transmitter
T-500-4, 4-Channel base Transmitter w/ Antenna
({xnR}) Receivers

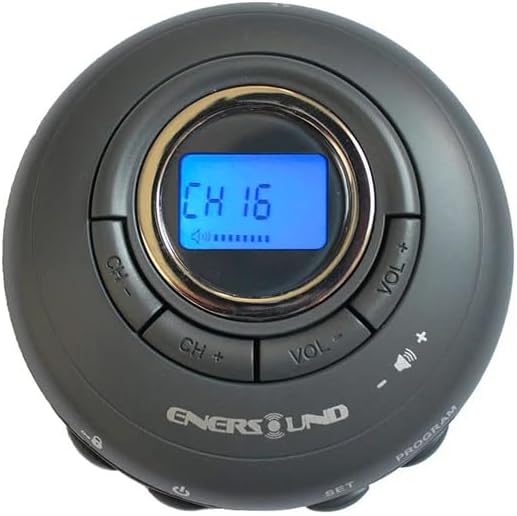

R-100 Digital receivers with LCD screen (no backlight)
(1) Microphone

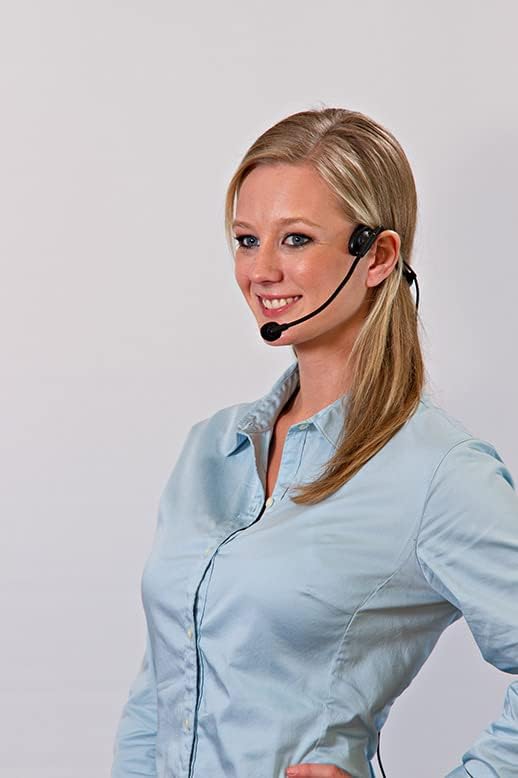

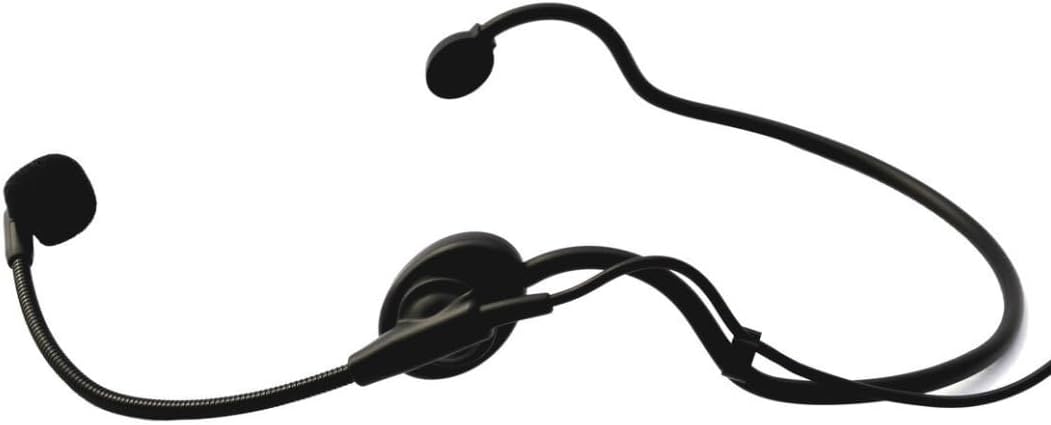

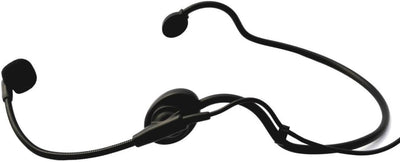

MIC-300 Professional Headband Microphone
FAQs
Explore our FAQ section to learn more.
What is this interpretation and translation system?
This is a cost-effective wireless FM system designed for live simultaneous interpretation in churches, schools, conferences, presentations and other multilingual events. A human interpreter translates the speaker’s message in real time, and audience members hear the interpretation through individual wireless receivers.
Does the system translate speech automatically?
No. The system requires a live human interpreter who speaks both the source and target languages. It transmits the interpreter’s voice to the listeners but does not include automatic translation or captioning. It can be connected to the Enersound Cloud platform for those functions, but that service is not included with this package.
What is included with the system?
The package includes one T-500-4 four-channel tabletop transmitter with antenna, one MIC-300 professional headband microphone and the selected number of R-100 digital receivers with LCD screens. Packages are available for 5, 10 or 20 listeners.
How does the interpreter monitor feature work?
The integrated interpreter-console function allows the interpreter to receive the original speaker’s audio while delivering the translated message through the microphone. This helps the interpreter hear the source clearly and provide a more accurate real-time interpretation. A compatible connection to the venue’s PA or audio system may be required.
How many listeners can use the system?
The transmitter can broadcast to an unlimited number of compatible Enersound receivers. The system can therefore be expanded by purchasing additional R-100 or R-120 receivers as the audience grows.
Can the system support multiple languages at the same event?
Yes. Up to four languages or groups can operate in the same room when each interpreter uses a separate T-500-4 transmitter and microphone on a different channel. Additional transmitters and microphones are sold separately.
What is the operating range?
The system provides a coverage range of up to approximately 500 feet under suitable conditions. The range can be extended to as much as 1,000 feet with a compatible optional external antenna. Walls, obstructions and local radio-frequency interference may reduce actual coverage.
How many channels are available?
The T-500-4 transmitter offers four selectable channels in the 72–76 MHz FM frequency band. Each included R-100 receiver is programmed to one channel, helping simplify operation for audience members.
Is the system easy to set up?

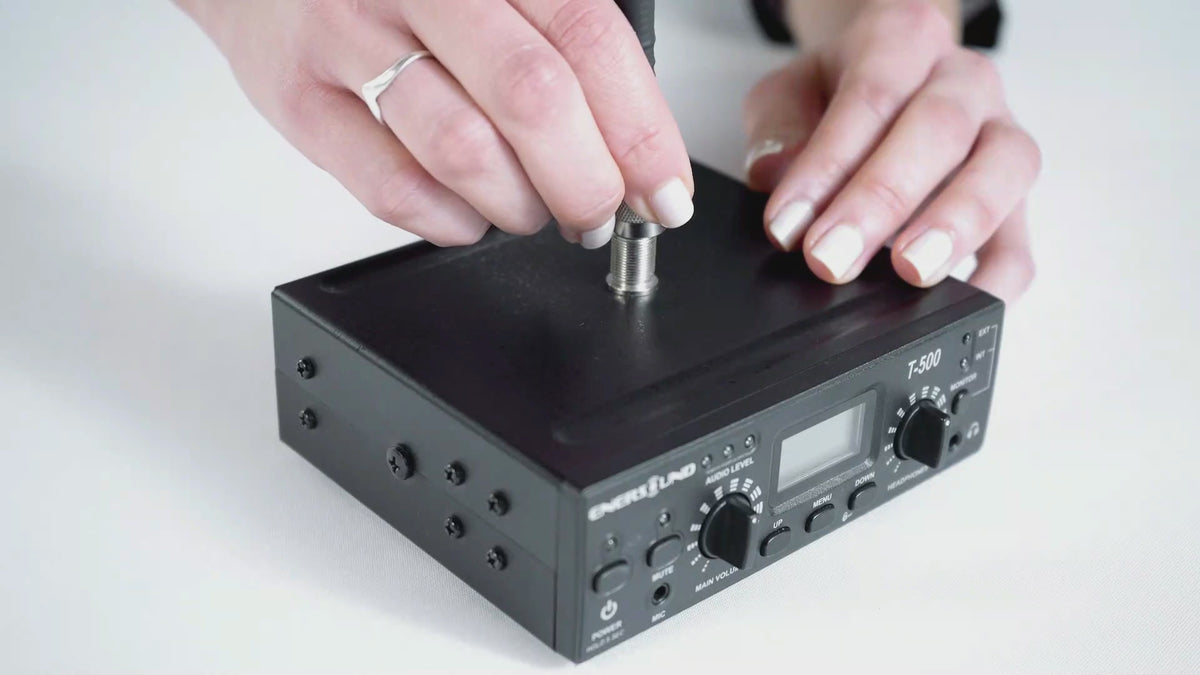

Yes. The tabletop transmitter is designed for straightforward operation. Connect the interpreter’s microphone and the appropriate source or monitor audio, select the desired channel and distribute receivers programmed to that channel. Each listener can then hear the interpretation through a compatible earphone or headphone.
What warranty and support are included?
The system includes a US-based three-year warranty and free phone support. Warranty coverage applies according to the seller’s and manufacturer’s applicable terms and conditions.
