Description
Description

The Enersound TSC Portable Simultaneous Interpretation & Tour Guide System delivers clear, reliable audio with complete mobility at an affordable price. Designed for simultaneous interpretation, assistive listening, guided tours, training sessions, factory visits, and other mobile communication applications, it allows speakers and listeners to move freely without compromising sound quality. The system includes a battery-powered wireless FM transmitter and portable receivers for dependable, interference-free communication. It is fully scalable, allowing you to add an unlimited number of receivers to accommodate audiences of virtually any size. For multilingual events or applications requiring multiple audio channels, the system supports up to four channels or audio sources within the same area by adding one transmitter and microphone for each additional language or audio source.





Disclaimer: This system requires a live human interpreter. For automatic speech translation and live captioning, use the Enersound Cloud system.

Features:

• 3-Year Warranty on Transmitter and Receivers.• Completely wireless.
• FCC and IC Approved
• Fully Portable Lightweight and ready to use.
• 4-Channel System: 4 User-selectable Channels on Transmitter
• Crystal Clear Sound, Superb Audio Quality.
• Coverage Range Up to 150ft.

Connection Diagram:



Video

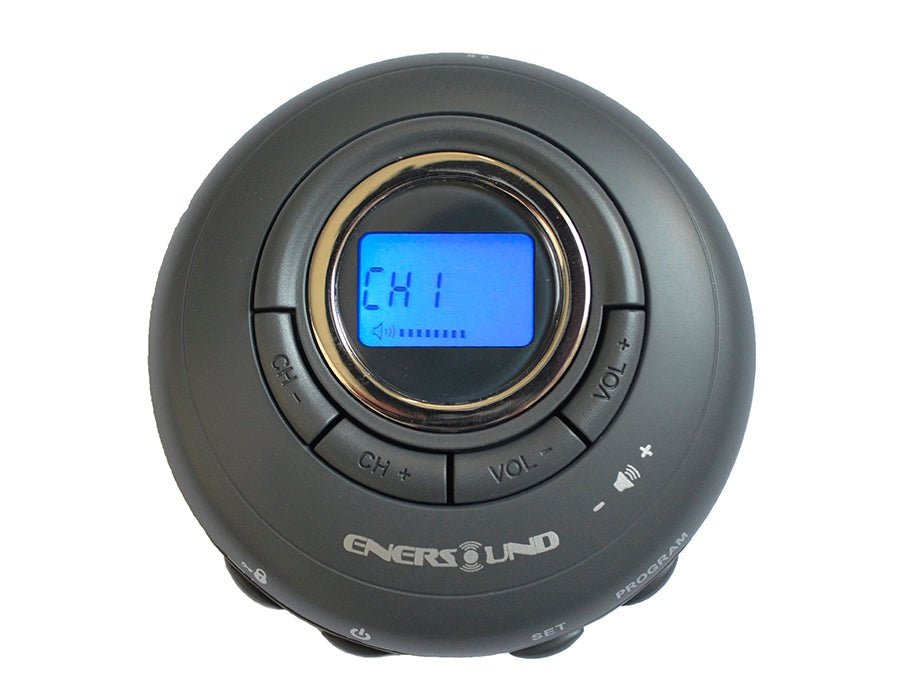

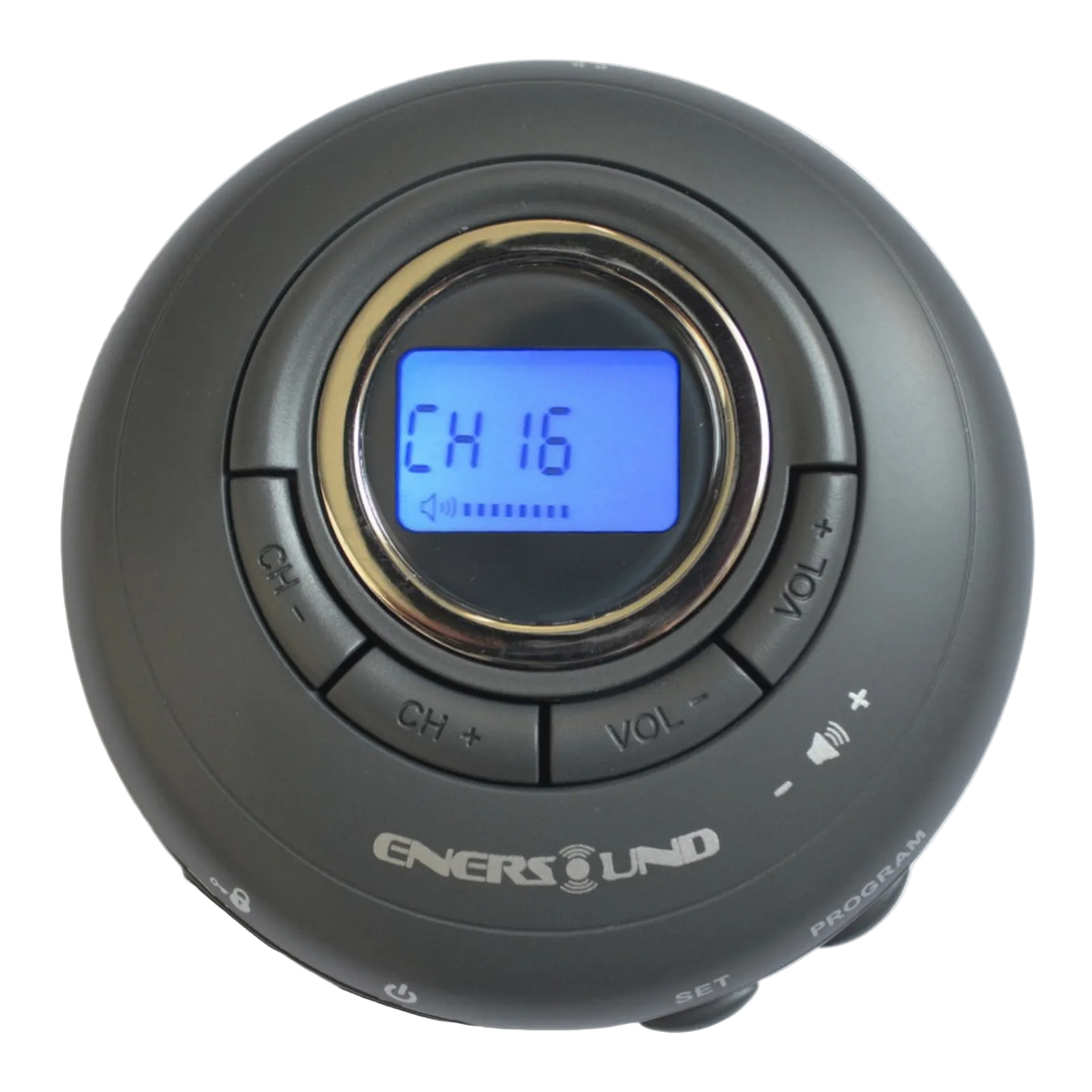

Technical Specifications R-100

  • Batteries: (2) AAA alkaline batteries (1.5 V × 2) or (2) AAA NiMH rechargeable batteries
  • Battery Life:
    • Up to 55 hours with alkaline batteries
    • Up to 40 hours with NiMH rechargeable batteries
  • Number of Channels: 1 programmable channel
  • Available Frequencies: 20
  • Frequency Range: FM 72.0–76.0 MHz
  • FM Deviation: ±75 kHz
  • De-emphasis: 75 µs
  • Sensitivity: 1.12 µV at 12 dB SINAD
  • Signal-to-Noise Ratio: 55 dB at 100 µV
  • Audio Frequency Response: 80 Hz–12 kHz
  • Audio Power: 33 mW + 33 mW at 32 Ω
  • Audio Connector: 3.5 mm stereo phone jack
  • Current Consumption: 22 mA nominal
  • Diameter: 3" (76 mm)
  • Height: 1.22" (31 mm)
  • Weight Without Batteries: 2.3 oz (65 g)
  • Weight With Batteries: 3.1 oz (88 g)

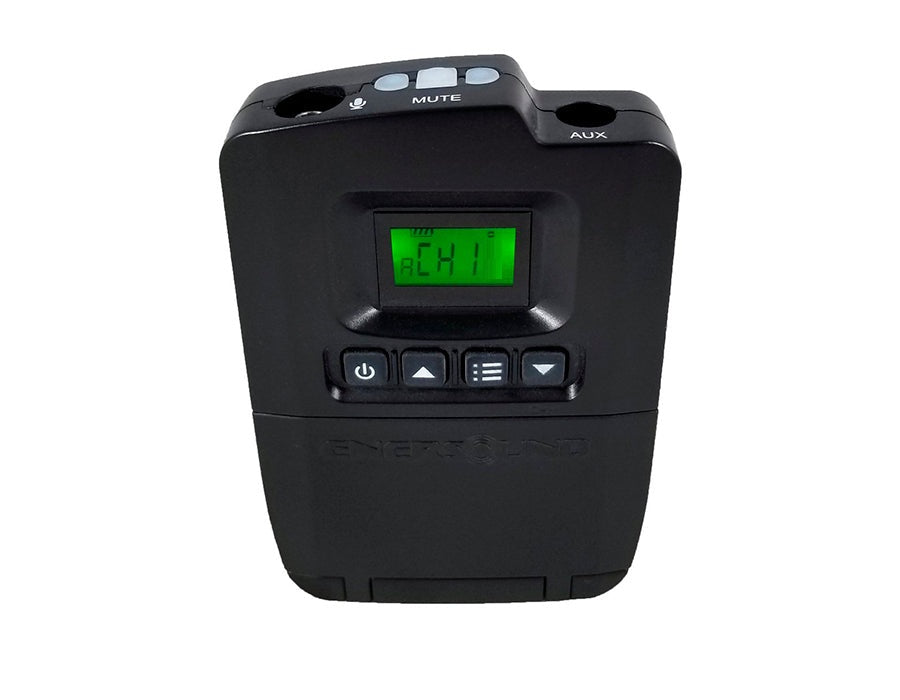

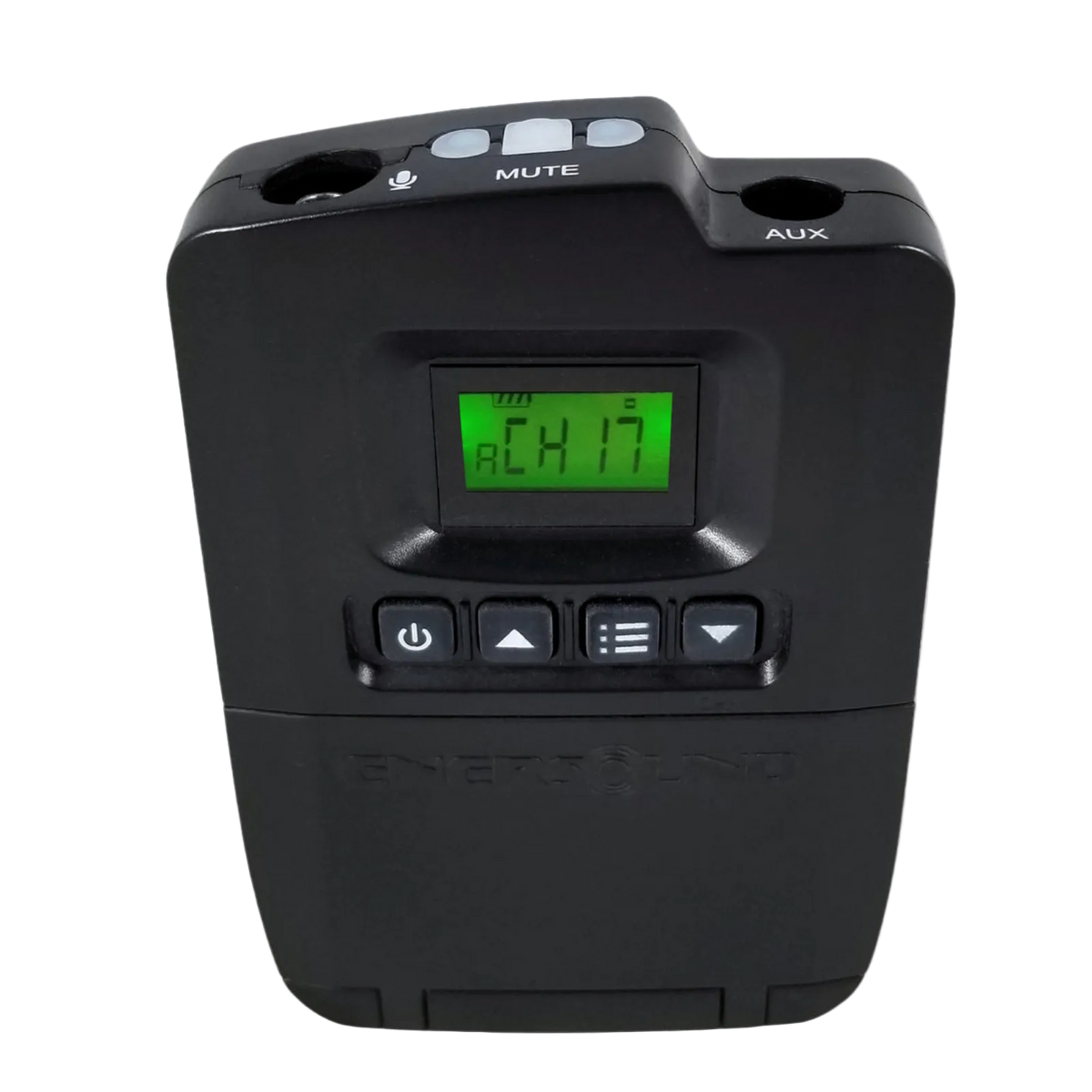

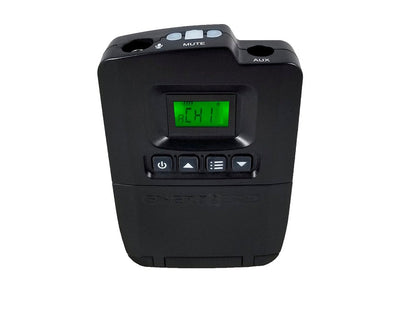

Technical Specifications TP-600-4

  • Operating Frequency: 72.1, 72.5, 72.9, 75.7 MHz
  • Number of Channels: 4 selectable
  • Frequency Deviation:
    • Wide: ±75 kHz
    • Narrow: ±25 kHz maximum deviation
  • Frequency Accuracy: ±0.005%
  • Transmitter Stability: ±20 ppm
  • Output Power:
    • High: 80,000 µV/m at 3 m
    • Low: 40,000 µV/m at 3 m
  • Antenna: 50-ohm rubber ducky antenna or optional remote antenna
  • Antenna Connector: Modified TNC
  • Compliance: FCC Part 15, Industry Canada
  • Frequency Response: 100 Hz–15 kHz
  • Signal-to-Noise Ratio: 70 dB
  • System Distortion: <2% THD at 80% deviation
  • Audio Input 1: 3-pin XLR and 1/4" TRS combination jack
  • Audio Input 1 Level: MIC or LINE level, balanced or unbalanced
  • Nominal Input Level: 0/56 dBu (0.77 V / 1.3 mV), line/mic
  • Phantom Power: 12 VDC on XLR pins 2 & 3 or tip and ring of 1/4" TRS jack
  • Audio Input 2: RCA jack, unbalanced line level
  • Audio Input 2 Level: -10 dBu nominal, 100 kΩ
  • External Monitor Input: RCA jack, unbalanced line level, -10 dBu nominal, 100 kΩ
  • REC Output: RCA jack, unbalanced output, -10 dBu nominal, 10 ohms
  • MIC Input: Front-panel 3.5 mm (1/8") TRS jack with DC power on tip for electret microphones
  • Audio Processing: 2:1 signal compression
  • Headphone Output: 3.5 mm stereo TRS jack
  • Headphone Output Level: Adjustable
  • Maximum Headphone Power: 61 mW @ 8 ohms
  • Headphone Impedance: 4–16 ohms
  • Power Supply Input: 100–240 VAC, 50–60 Hz
  • Power Supply Output: 15 VDC, 1 A
  • Power Connector: 5.00 mm OD / 2.5 mm ID barrel connector
  • Operating Temperature: 23°F to 104°F
  • Storage Temperature: -4°F to 140°F
  • Humidity: 0–95% relative humidity
  • Dimensions (D × W × H): 5" × 5.5" × 2.36"
  • Unit Weight: 1.2 lb (0.54 kg)
  • Shipping Weight: 2.2 lb (1.1 kg)
  • Rack Mounting: 1.5 rack spaces high × 0.5 rack space wide
  • Optional Rack Mounts: RM-501 or RM-502
  • One or two transmitters can be mounted in 1.5 rack spaces.

Compare Models

Loading comparison…

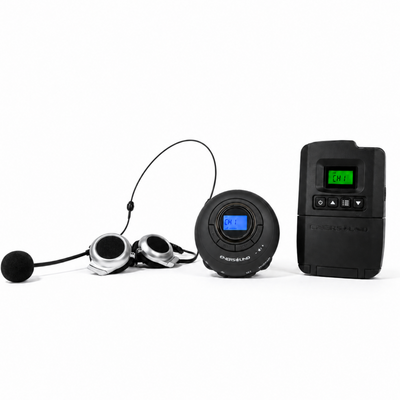

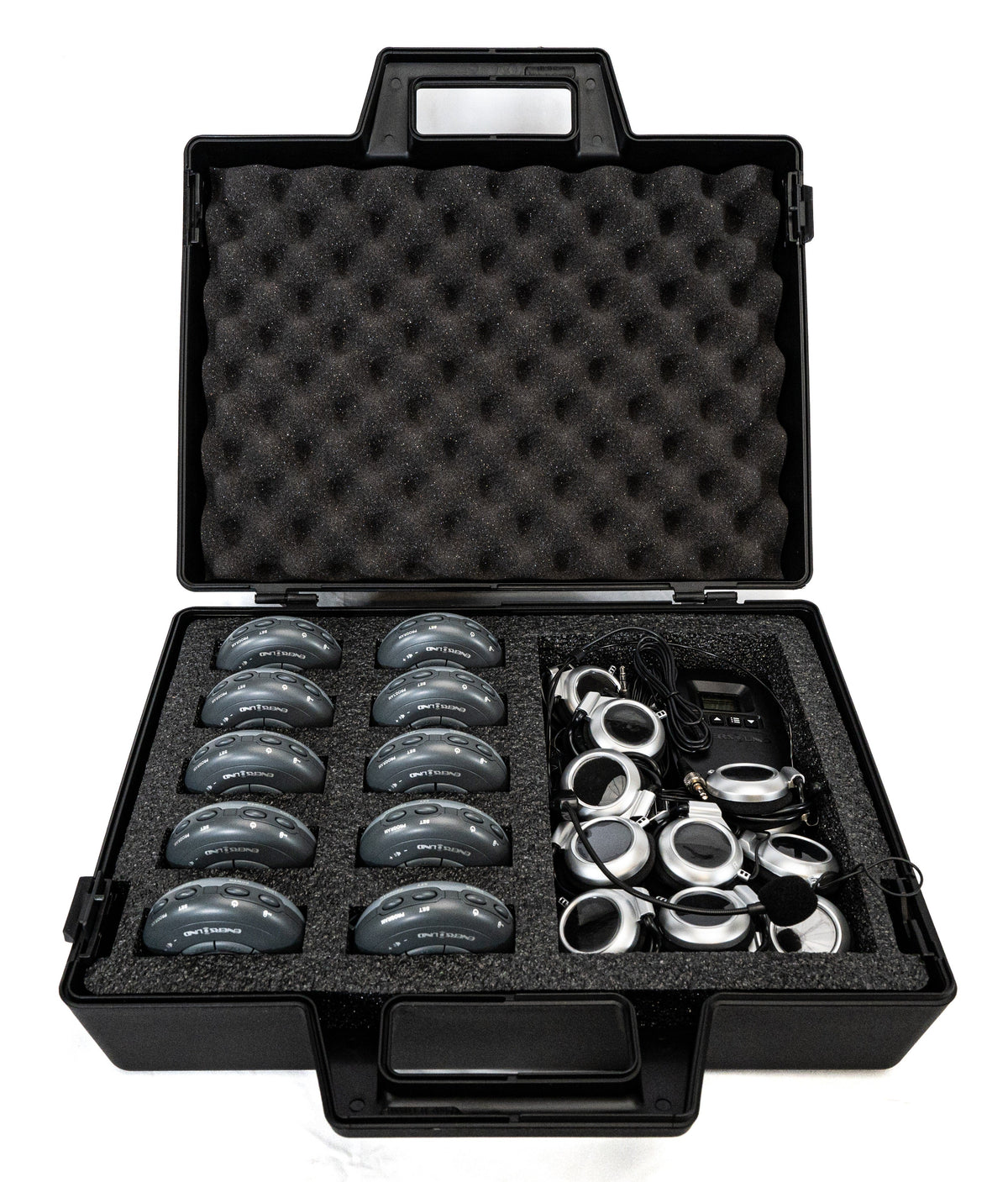

System Includes

  • (1) TP-600 transmitter

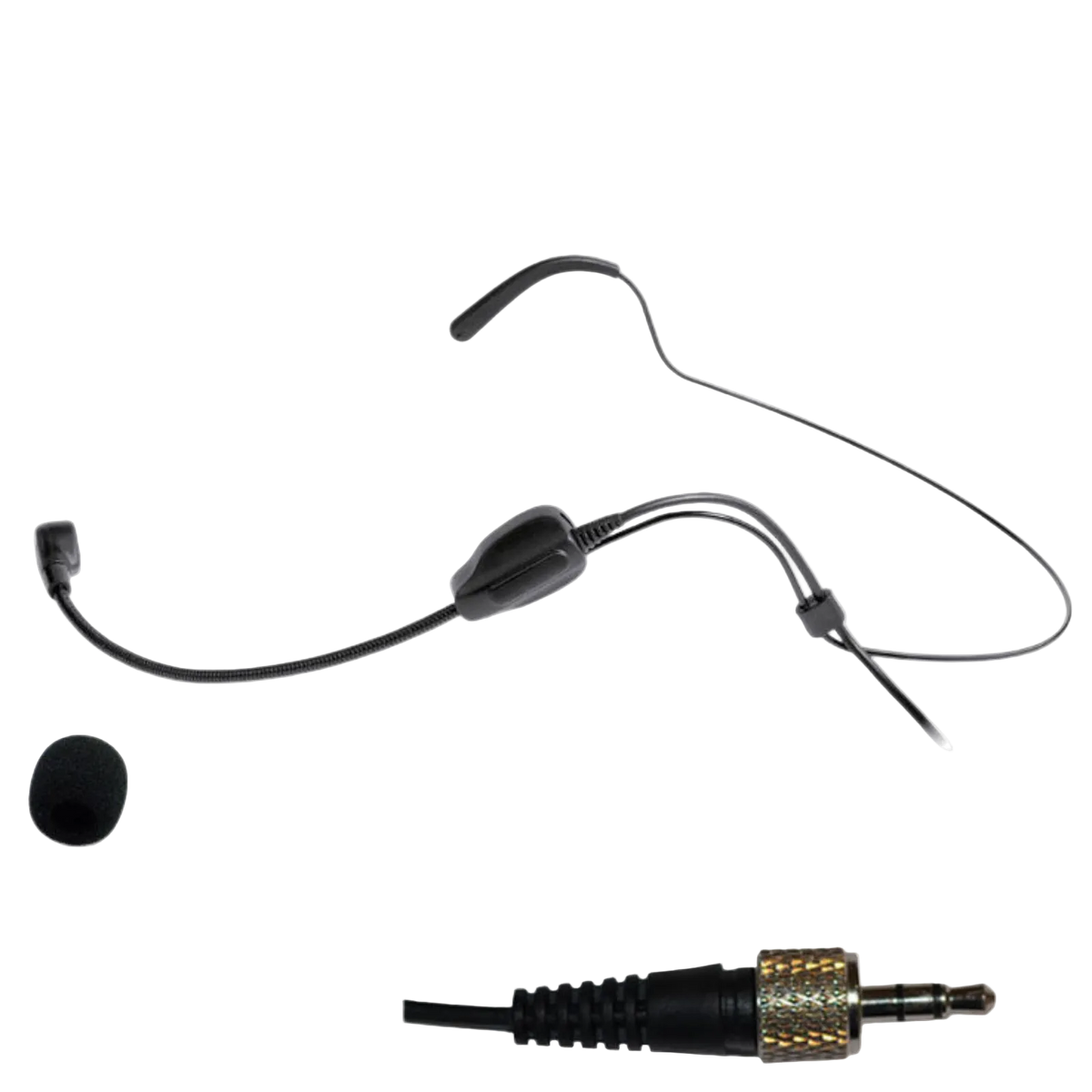

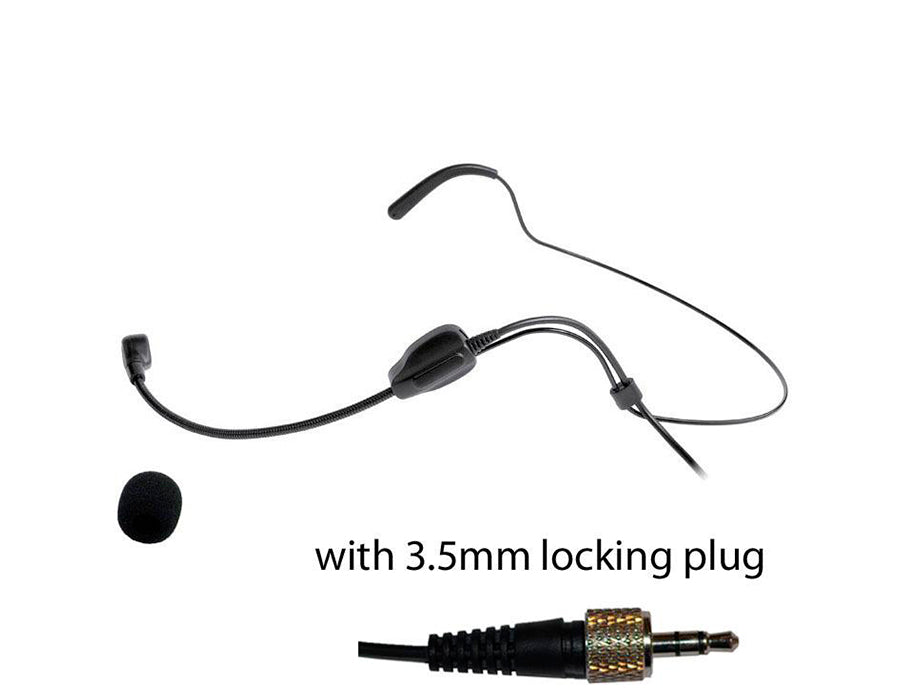

  • (1) MIC-200SEN

  • ({xnR}) Receivers

    R-100 Digital receivers with LCD screen (no backlight)

FAQs

Explore our FAQ section to learn more.

What is the TSC Portable Translation and Tour Guide System?

The TSC is a completely wireless FM audio system designed for simultaneous interpretation, guided tours, employee training, factory visits, assistive listening and other mobile group communication applications. It transmits a presenter’s or interpreter’s voice directly to individual listeners.

Does the system translate languages automatically?

No. The TSC transmits audio but does not translate speech automatically. For multilingual applications, a live human interpreter listens to the speaker and delivers the translation through the included microphone and transmitter.

What components are included with the system?

The system includes one TP-600-4 portable transmitter, one MIC-200SEN headband microphone and the selected number of R-100 digital receivers. The receiver quantity depends on the package selected when ordering.

How many listeners can use the system?

One transmitter can broadcast to an unlimited number of compatible R-100 receivers. The system can be expanded at any time by adding more receivers, making it suitable for both small groups and larger audiences.

What is the operating range?

The TSC provides a transmission range of up to 150 feet, or approximately 45 meters, under suitable operating conditions. Walls, physical obstructions and local radio interference may reduce the effective range.

Can multiple languages or tour groups operate in the same area?

Yes. Up to four transmitters can be used simultaneously in the same location when each transmitter is assigned a different channel. This allows the system to support as many as four languages, presenters or separate tour groups.

How many channels does the system have?

The TP-600-4 transmitter provides four selectable channels within the 72–76 MHz FM frequency band. Each R-100 receiver is programmed to the appropriate channel so listeners hear the intended presenter or interpreter.

How long do the receiver batteries last?

The R-100 receiver provides up to approximately 55 hours of operation under suitable conditions. Actual battery life may vary depending on the type and condition of the batteries, listening volume and frequency of use.

Is the system easy to set up and carry?

Yes. No permanent installation is required. The presenter connects the included microphone to the battery-powered transmitter, selects the desired channel and distributes the receivers to the listeners. The compact receivers can be carried using a belt clip, neck strap or compatible arm band.

What warranty is included?

The TP-600-4 transmitter and R-100 receivers are covered by a limited three-year warranty, subject to the manufacturer’s warranty terms and conditions.
